DIN 571 Hex Wood Screws
DIN 571 Hex Wood Screws made of steel, Zinc plated, size M3 - M16 From China Wood Screws Manufacturer.
 |
 |
DIN 571 Hex Wood Screws ,
Material: Steel , Surface treatment: Zinc Plated
Size: M3 - M16

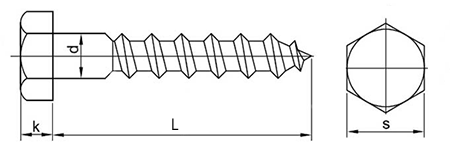

DIN 571 Hex Wood Screws Size Chart:
| Size | d | k max | k min | s max | s min | e |
| M4 | 5.0 | 3.1 | 2.5 | 7 | 6.64 | 7.5 |
| M5 | 6.0 | 3.88 | 3.13 | 8 | 7.64 | 8.63 |
| M6 | 7.2 | 4.38 | 3.63 | 10 | 9.64 | 10.89 |
| M8 | 10.2 | 5.88 | 5.13 | 13 | 12.57 | 14.2 |
| M10 | 12.2 | 7.45 | 6.55 | 17 | 16.57 | 18.72 |
| M12 | 15.2 | 8.45 | 7.55 | 19 | 18.48 | 20.88 |
| M16 | 19.2 | 10.45 | 9.55 | 24 | 23.16 | 26.17 |
| M20 | 24.4 | 13.9 | 12.1 | 30 | 29.16 | 32.95 |
