DIN 70852 Slotted Round Locknuts

Stainless Steel KM Lock Nut, round nut with slots as per DIN 981 standard, Material by Stainless Steel SUS304 or SUS316, A2/A4 grade, KM0-KM30 from China KM lock nut manufacturer.

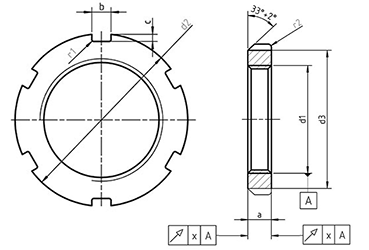

DIN70852 Slotted Round Locknuts drawing

Slotted Round Locknuts , DIN70852 , shaft spanner lock nuts, Groove Nuts

Material: Steel , Black oxide or zinc plated / Stainless Steel SUS304 ( A2 ) or SUS 316 (A4);
Size: M10 - M80

Size d2
+0/-0.007		 d3 b h
+0/-0.004
M10x1 0.79 0.63 0.18 0.2
M12x1.5 0.87 0.71 0.18 0.24
M14x1.5 0.94 0.79 0.18 0.24
M16x1.5 1.10 0.91 0.22 0.24
M18x1.5 1.18 0.98 0.22 0.24
M20x1.5 1.26 1.06 0.22 0.24
M22x1.5 1.42 1.18 0.26 0.28
M24x1.5 1.50 1.26 0.26 0.28
M26x1.5 1.57 1.34 0.26 0.28
M28x1.5 1.65 1.42 0.26 0.28
M30x1.5 1.73 1.5 0.26 0.28
M32x1.5 1.89 1.61 0.28 0.31
M35x1.5 1.97 1.69 0.28 0.31
M38x1.5 2.13 1.85 0.28 0.31
M40x1.5 2.20 1.93 0.28 0.31
M42x1.5 2.36 2.05 0.31 0.31
M45x1.5 2.44 2.13 0.31 0.31
M48x1.5 2.56 2.24 0.31 0.31
M50x1.5 2.68 2.36 0.31 0.31
M52x1.5 2.76 2.44 0.31 0.31
M55x1.5 2.95 2.64 0.31 0.31
M60x1.5 3.15 2.8 0.43 0.35
M65x1.5 3.35 2.99 0.43 0.35
M70x1.5 3.54 3.19 0.43 0.35
M80x1.5 3.94 3.58 0.43 0.39
