SN 60727 VSKD Spring Lock washer
SN 60727 VSKD Spring Lock washer, made by spring steel or stainless steel, size M4-M30 , From China Lock Washers Manufacturer.
 |
 |
SN 60727 VSKD Spring Lock washer , Steel type / Stainless Steel Type
Material: Steel, Zinc flake ; Stainless Steel SUS 304 / SUS 316
Hardness: HRC47-HRC52;
Size: M4 - M30

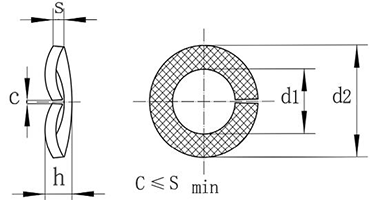

| Size | d min | dc max | H min | b max | h max | kg/1000Pcs |
| Φ4 | 4.1 | 7.6 | 1.4 | 1.6 | 1 | 0.18 |
| Φ5 | 5.1 | 9.2 | 1.8 | 1.9 | 1.3 | 0.36 |
| Φ6 | 6.1 | 11.8 | 2.4 | 2.65 | 1.7 | 0.83 |
| Φ8 | 8.1 | 14.8 | 3 | 3.15 | 2.1 | 1.6 |
| Φ10 | 10.1 | 18 | 3.4 | 3.7 | 2.35 | 2.5 |
| Φ12 | 12.1 | 21 | 3.9 | 4.2 | 2.65 | 3.8 |
| Φ16 | 16.1 | 27.3 | 5.5 | 5.2 | 3.7 | 8.9 |
| Φ20 | 20.2 | 33.6 | 6.3 | 6.2 | 4.2 | 15.2 |
| Φ24 | 24.5 | 40 | 6.3 | 7.25 | 5.2 | 26.2 |
